Products

Since its establishment, CUBEBIO has committed itself to research
and development of cancer biomarkers and products for early cancer detection.

CMDD series

CMDD-20

CMDD20 image

CMDD-20 diagnoses 20 people’s urine specimen simultaneously. It operates with fully-automated system to maximize the work efficiency and minimize the human error.

01Features
  • Fully-automated operation system
  • Efficient waste disposal
  • Suitable to be used at public hospitals, large medical centers, etc.
02Specifications

  • Dimension (W x D x H)

    2,700 x 1,200 x 1,850 mm

  • Weight

    1,600 kg

  • Maximum Throughput

    20 people’s urine specimen

  • Turnaround time

    20 minutes

03Electrical Specifications

  • Three-phase/Single-phase (Including ground)

    Three-phase (R.S.T.PE)

  • Current (A)

    13.3

  • Voltage (V,Hz)

    380V, 50~60Hz

  • Power Consumption (Kw)

    8.8 Kw

CMDD-12

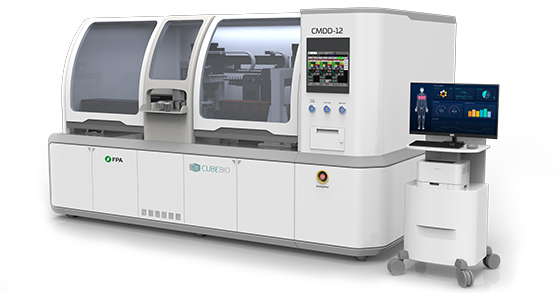

CMDD12 image

CMDD-12 diagnoses 12 people’s urine specimen simultaneously. It operates with fully-automated system to maximize the work efficiency and minimize the human error.

01Features
  • Down-sized model of CMDD-20
  • Fully-automated operation system
  • Efficient waste disposal
  • Suitable to be used at public hospitals, large medical centers, etc.
02Specifications

  • Dimension (W x D x H)

    2,400 x 900 x 1,850 mm

  • Weight

    1,400 kg

  • Maximum Throughput

    12 people’s urine specimen

  • Turnaround time

    20 minutes

03Electrical Specifications

  • Three-phase/Single-phase (Including ground)

    Three-phase (R.S.T.PE)

  • Current (A)

    13.8

  • Voltage (V,Hz)

    220V, 50~60Hz

  • Power Consumption (Kw)

    5.3 Kw

CMDD-04

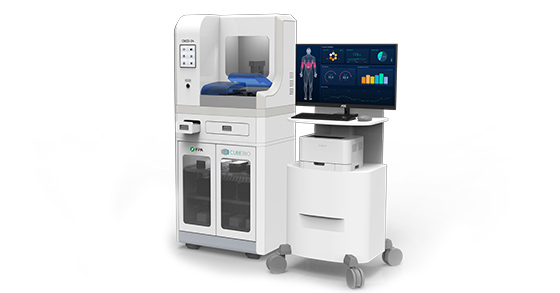

CMDD04 image

CMDD-04 diagnoses 4 people’s urine specimen simultaneously. It operates with semi-automated system so that work efficiency can be maximized.

01Features
  • Semi-automated operation system
  • Hygienic dispensing
  • Suitable to be used at small-sized hospitals, private hospitals, clinics, etc.
02Specifications

  • Dimension (W x D x H)

    690 x 600 x 1,600 mm

  • Weight

    110 kg

  • Maximum Throughput

    4 people’s urine specimen

  • Turnaround time

    20 minutes

03Electrical Specifications

  • Three-phase/Single-phase (Including ground)

    Single-phase (L.N.PE)

  • Current (A)

    10.5

  • Voltage (V,Hz)

    220V, 50~60Hz

  • Power Consumption (Kw)

    2.3 Kw

CMDD-04M

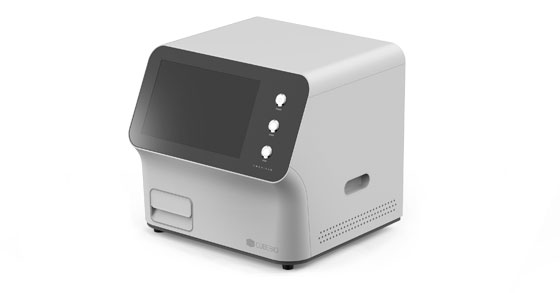

CMDD04M image

CMDD-04M diagnoses 4 people’s urine specimen simultaneously. It is manufactured in a portable size and touch screen is embedded to increase user convenience.

01Features
  • Stand-alone operation with touch screen
  • Convenient user interface
  • Compact and portable
  • Can be used at private hospitals, pharmacies, homes, etc.
02Specifications

  • Dimension (W x D x H)

    466 x 440 x 434 mm

  • Weight

    17 kg

  • Maximum Throughput

    4 people’s urine specimen

  • Turnaround time

    20 minutes

03Electrical Specifications

  • Three-phase/Single-phase (Including ground)

    Single-phase (L.N.PE)

  • Current (A)

    1.6

  • Voltage (V,Hz)

    220V, 50~60Hz

  • Power Consumption (Kw)

    0.35 Kw
